Moving into a new home or upgrading your kitchen is an exciting milestone. One of the most important appliances you will set up is the kitchen chimney. A kitchen chimney removes smoke, vaporized oil, and cooking odors, keeping your kitchen walls grease-free. However, the performance of even the most expensive, high-suction auto-clean chimney depends on how well it is installed.
Incorrect installation can result in poor suction, high vibration noise, oil leaking down the walls, or electrical faults. If you are relocating within Tirupati or bought a brand new kitchen hood, booking professional kitchen chimney installation Tirupati services is critical. In this guide, we cover the exact calibrations required for chimney fitting, uninstallation, and duct pipe routing.
Why DIY Chimney Installation is Not Recommended
A kitchen chimney is not a simple plug-and-play appliance. It is a heavy mechanical device that requires mounting onto a concrete wall, precise alignments, and routing a duct pipe through a ventilation hole. Here are the main challenges of attempting to install a chimney yourself:
- Heavy Mounting: A typical chimney weighs between 10 to 20 kilograms. If the wall brackets are not anchored properly with heavy-duty expansion bolts, the chimney can vibrate loose and fall, damaging your countertop, stove hob, or causing serious injuries.

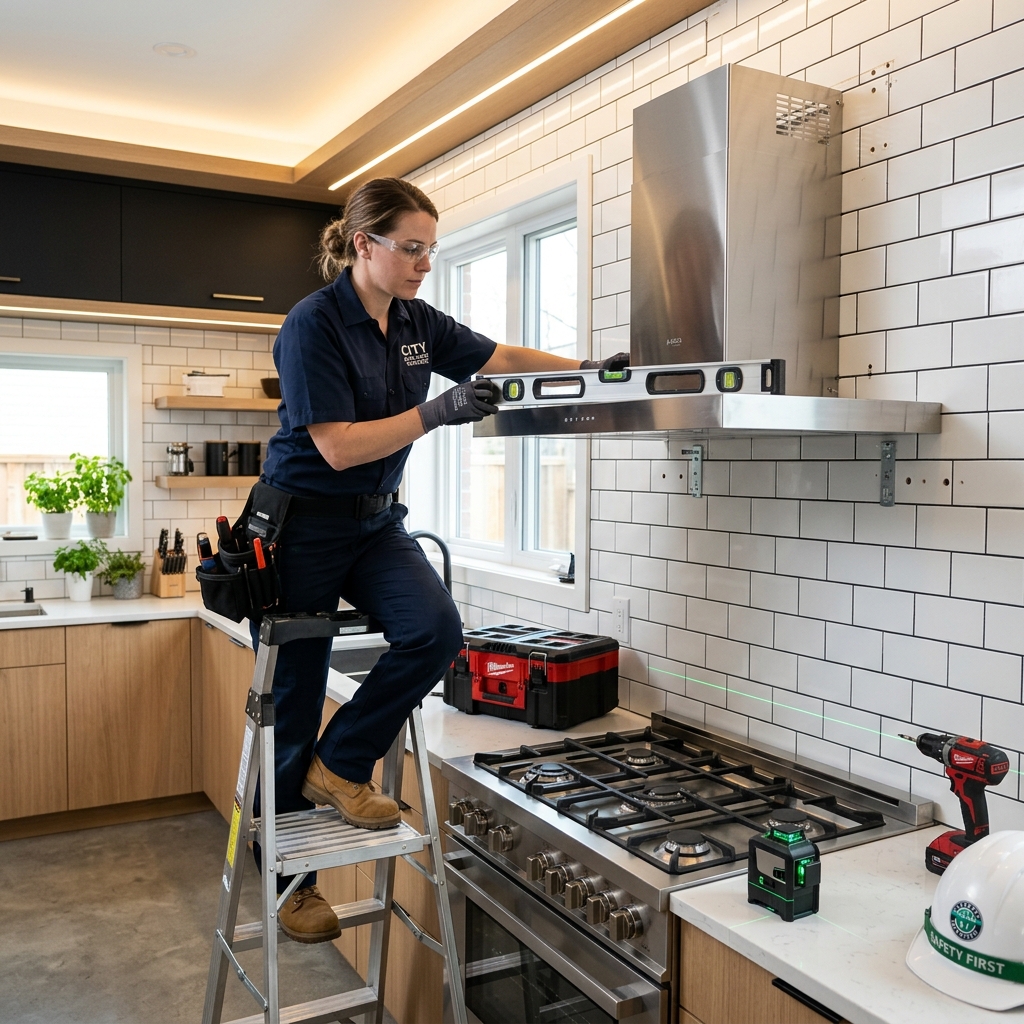

- Precise Leveling: If the chimney is not perfectly horizontal, grease will drain unevenly. In auto-clean or oil-collector chimneys, this causes oil to leak out of the corners and drip onto your stove or wall tiles.
- Drilling and Masonry: Routing the exhaust duct pipe requires a 6-inch circular hole in the kitchen wall leading outside. Drilling this through concrete tiles and brick without cracking surrounding structures requires specialized core-cutting tools.
- Warranty Terms: Most major brands (Faber, Elica, Glen, Hindware) will void the manufacturer's warranty if the chimney is damaged due to amateur installation. Professional installation protects your investment.
Standard Chimney Installation Guidelines
When our professional technicians install your chimney, they follow strict manufacturer guidelines to ensure maximum suction efficiency:
1. The Ideal Mounting Height
The distance between the cooktop (gas stove or induction) and the bottom of the kitchen chimney must be carefully calibrated.
- For standard gas stoves: The ideal height is 26 to 30 inches (65 to 75 cm).
- For induction cooktops: The height can be slightly lower, around 24 to 28 inches (60 to 70 cm).
2. Duct Pipe Calibrations and Bends
The exhaust duct pipe should be as straight and short as possible. Every 90-degree bend in the duct pipe reduces the overall suction power by approximately 15%. Our technicians ensure that the flexible aluminum or PVC duct pipe has a maximum of two bends and does not exceed 10-12 feet in length. We also install a protective cowl or bird-mesh cap on the external wall outlet to prevent birds, rats, or rainwater from entering the pipe.
3. Safe Electrical Grounding
Kitchen chimneys feature metal bodies and high-voltage motors. They must be connected to a grounded 6-Amp or 16-Amp socket. Our technicians test the socket grounding to prevent static shocks on the stainless steel casing.
Safely Uninstalling an Old Kitchen Chimney
If you are relocating, remodeling your kitchen cabinet woodwork, or upgrading to a new model, you will need a professional chimney uninstallation. Removing a grease-caked chimney requires care. The technician must disconnect the ducting, capture any trapped oil in the oil collector, and carefully demount the unit without scratching your modular kitchen woodwork or breaking wall tiles. Our team cleans the bracket area and packs the chimney safely for transport.
What is Included in Our Tirupati Doorstep Service?
Natural Chimney Service & Repair offers comprehensive doorstep chimney services in Tirupati. Our services include:
- New Chimney Installation: Complete bracket mounting, leveling, and duct pipe fitting.
- Chimney Relocation: Safe uninstallation from your old house, transport prep, and reinstallation at your new home.
- Exhaust Duct Core Cutting: Neat masonry drilling for the duct pipe using core-cutting tools.
- Post-Installation Demonstration: Explaining how speed levels, auto-clean, and touch controls work.
Coverage Across Tirupati
As a local provider, we respond quickly to installation requests. We offer same-day doorstep support across Tirupati, covering Balaji Colony, Bhavani Nagar, Alipiri, MR Palli, Renigunta Road, Korlagunta, Ramanuja Palli, and neighboring areas. Our rates are affordable and transparent, starting at flat, competitive prices.
Get your new kitchen chimney installed correctly the first time. Contact Natural Chimney Service & Repair today at +91 86882 98882 or message us on WhatsApp to schedule an expert installation slot today!
